Mole 3D Scanner

Medium-format

· 0.05MM ACCURACY
· 0.1MM RESOLUTION
· MULTISPECTRAL TECHNOLOGY
· DEDICATED MOBILE SCANNING APP (requires optional CONNECT)


🔥BLACK FRIDAY🔥 The Best Offers Ever
Sale price$550.00 Regular price$849.00
Save $299.00
Select Combos: Luxury

7-Day Risk-Free Trial

14-Day Price Protection

Free Scanning Software

3DMakerpro Mole: Precise Accuracy, Seamless Tracking

A Cumulation of Hardware and Software

Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.

3d camera scanner3d camera scanner
3d scanner model

0.05mm Accuracy, 0.1mm Resolution

With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details.

3d scanner model

Ultra-Clear Texture Mode

Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping.


Tips: Color models require the color kit (included in the luxury combo).

3d portable scanner

Black objects? No problem

Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colors.

Incredible scan success rate

Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan.

3d scanner sale

Visual tracking

Using visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.

3d scanner sale

Optical anti-shake modules

Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.

3d scanner

Comfortable to use

Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods of time.

3d portable scanner

Adding CONNECT transforms MOLE into a portable scanner

Introducing 3DMakerpro Connect, which is designed for portable and stable scanning actions. Enjoy the freedom of scanning with zero limits, wherever and whenever you want.

Tips: Connect requires a power bank with a 12V PD 22.5W type C interface.

3d scanner sale

Powerful graphics chip

The 3DMakerpro Connect image processing chip connects the Mole to your mobile phone, ensuring high-quality scans even when scanning outdoors.

Simple and reliable

3DMakerpro Connect quickly connects Mole, tripod, phone, and power supply, ready to go anytime.

Made for Scanning

Android | iOS

JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.

3d scanner sale

Windows | MacOS

JMStudio is 3Dmakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.

3d scanner sale

Android | iOS

JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.

3d scanner sale

Windows | MacOS

JMStudio is 3Dmakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.

3d scanner sale

Compatible Software

3d scanner sale

What the Experts are Saying

The scanning process is easy and straightforward! To start off, you can pick between easy scan, where you can manually move around the scanner, or table scan, where the object is turned around on a turntable.

Lorenzo Menz

I’m really impressed by a couple of points that I did discover. In the software, you can use the automatic alignment, but there is also a way to do it manually. You can kind of click on some points on the object, and it will ultimately fix it. You can also reorient within the software so you can make sure the bottom is in line with the floor planes so that when you export it, there’s less to do.

Rate My Funeral

As mentioned, the Mole is designed for small to medium sized objects, so it performs optimally when scanning items in that range, and the best results were obtained on Table Mode, thanks to the turntable providing a constant and stable turning motion.

3D Printing

One of the standout features of the Mole 3D scanner is its ability to work in all environments, including bright light and full sunshine, as well as dark and even completely black environments.

TechWalls

Overall, the Mole 3D Scanner is an ideal solution for those who demand accuracy, precision, and flexibility in their scanning needs. Whether you're a professional or a hobbyist, the Mole is sure to meet your needs and exceed expectations.

ALL3DP

Tech Specs

Mole 3D Scanner

Scan Performance Parameters:

  • Accuracy: 0.05mm
  • Resolution: 0.1mm
  • Frame rate: 10fps
  • Tracking mode: Visual tracking
  • Work distance: 150-400mm
  • Single capture range: 200x100mm
  • Typical object sizes: 15-1500mm
  • Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.

Software System Requirements:

  • Output format:OBJ/STL/PLY
  • Compatible system: Windows10/11 64bit, MacOS12/13
  • Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
  • Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
  • Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM

Hardware Parameters:

  • Light source: NIR
  • Color texture: Extended support
  • USB interface: USB2.0
  • Dimensions: 141x80x80mm
  • Weight: 390g

Scan Performance Parameters:

  • Accuracy: 0.05mm
  • Resolution: 0.1mm
  • Frame rate: 10fps
  • Tracking mode: Visual tracking
  • Work distance: 150-400mm
  • Single capture range: 200x100mm
  • Typical object sizes: 15-1500mm
  • Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.

Software System Requirements:

  • Output format:OBJ/STL/PLY
  • Compatible system: Windows10/11 64bit, MacOS12/13
  • Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
  • Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
  • Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM

Hardware Parameters:

  • Light source: NIR
  • Color texture: Extended support
  • USB interface: USB2.0
  • Dimensions: 141x80x80mm
  • Weight: 390g

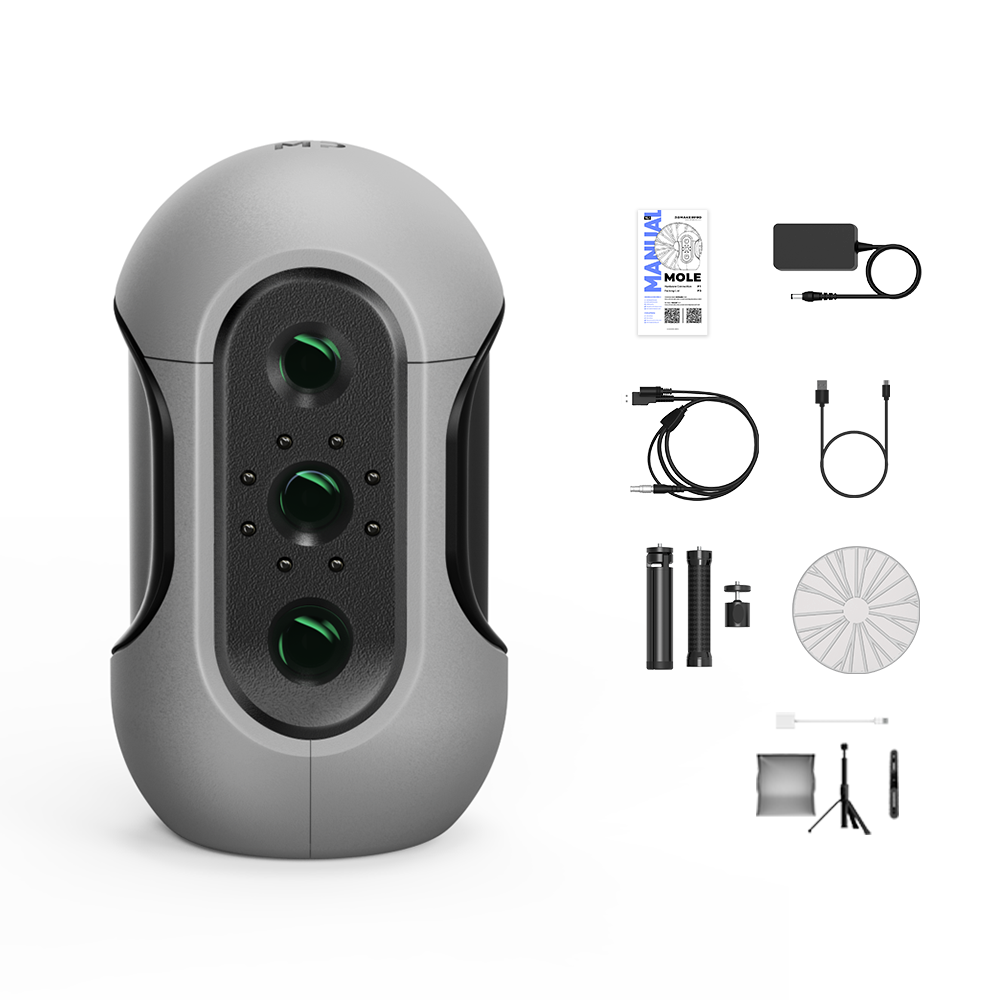

What's in the Box

Mole 3D scanner × 1
Power cord × 1
Data cable × 1

Questions? We've got answers

See how to use Mole in detail >

Customer Reviews

Based on 81 reviews
65%
(53)
23%
(19)
11%
(9)
0%
(0)
0%
(0)
S
Sam
Can’t beat it

For the price this thing is awesome! I am an engineer with a decade of CAD experience so this was easy to use and cleanup scans. Been wanting to 3D print a new one if these car bezels. Well now I can!

P
Phillip A.
An Amazing Little Scanner

The Mile scanner is fantastic for medium to larger 3D scanning. It picks up amazing detail and is very easy to use. The software does a great job aligning multiple scans and you usually end up with a useable scan that does not even need any kind of repair. I scanned an Indiana Joes fertility idol in one scan and picked up all the detail. I also was able to scan and Art Nouveau statue in a single scan as well and it was a darker bronze with a patina. It is very easy to adjust the brightness to capture dark objects and their detail. It is by no means a professional scanner, but for its price point it is really close. It tends to soften sharp detail slightly but that could easily be sharpened back up in other software. I also love that the tracking in the software is very forgiving and it rarely loses tracking and if it does nine out of ten times it will pick it back up fairly easily. I would highly recommend this to anyone that needs good useable scans but does not have the budget for a higher end scanner. It is the first low to mid range scanner that I am actually able to get good useable scans from without a lot of hassle.

@
@dreamscope_fx
Game changer at a hobby price!

Not only did they make an amazing combination of tech advances in scanning in an easy to handle form factor, they provided free software that doesn’t have a huge learning curve. For just the fact you can start a scan, then reposition the object, then append the areas you missed is remarkable. And all this for a great price, even at full price!

S
S.h.
everything it claims tto be and more!!!

everytime i use it ,it leaves me so impressed with what it does,its just a greal little mole!!!

N
Navaz D.
: A Game-Changer for 3D Printing and Design!

The Mole 3D Scanner by 3DMakerPro is an exceptional product that sets a new standard for 3D scanning technology. This cutting-edge scanner is a game-changer in the world of 3D printing and design, offering incredible precision and ease of use that is unmatched by other scanners on the market.
One of the standout features of the Mole 3D Scanner is its incredible speed. Unlike other scanners that can take hours to complete a single scan, the Mole can capture a high-quality 3D image in a matter of minutes. This is thanks to its advanced scanning technology that uses structured light to quickly capture and process data.
But speed isn't the only thing that sets the Mole apart. Its precision is also unparalleled. The scanner can capture intricate details with incredible accuracy, down to a resolution of 0.1mm. This means that you can create highly-detailed 3D models with ease, whether you're using it for industrial design, prototyping, or even art.

Another major advantage of the Mole 3D Scanner is its user-friendly interface. Unlike other scanners that require extensive technical knowledge to operate, the Mole is designed to be easy and intuitive to use. Its software is straightforward and simple, making it accessible to anyone regardless of their level of experience with 3D scanning technology.

Overall, I highly recommend the Mole 3D Scanner by 3DMakerPro to anyone looking for a top-of-the-line scanner that offers exceptional speed, precision, and ease of use. Whether you're a professional designer, engineer, or hobbyist, this scanner is a must-have tool that will revolutionize your 3D scanning and printing projects.
