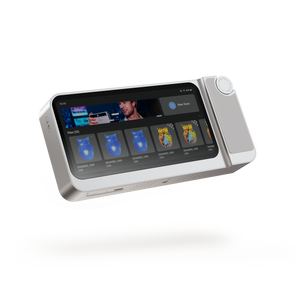

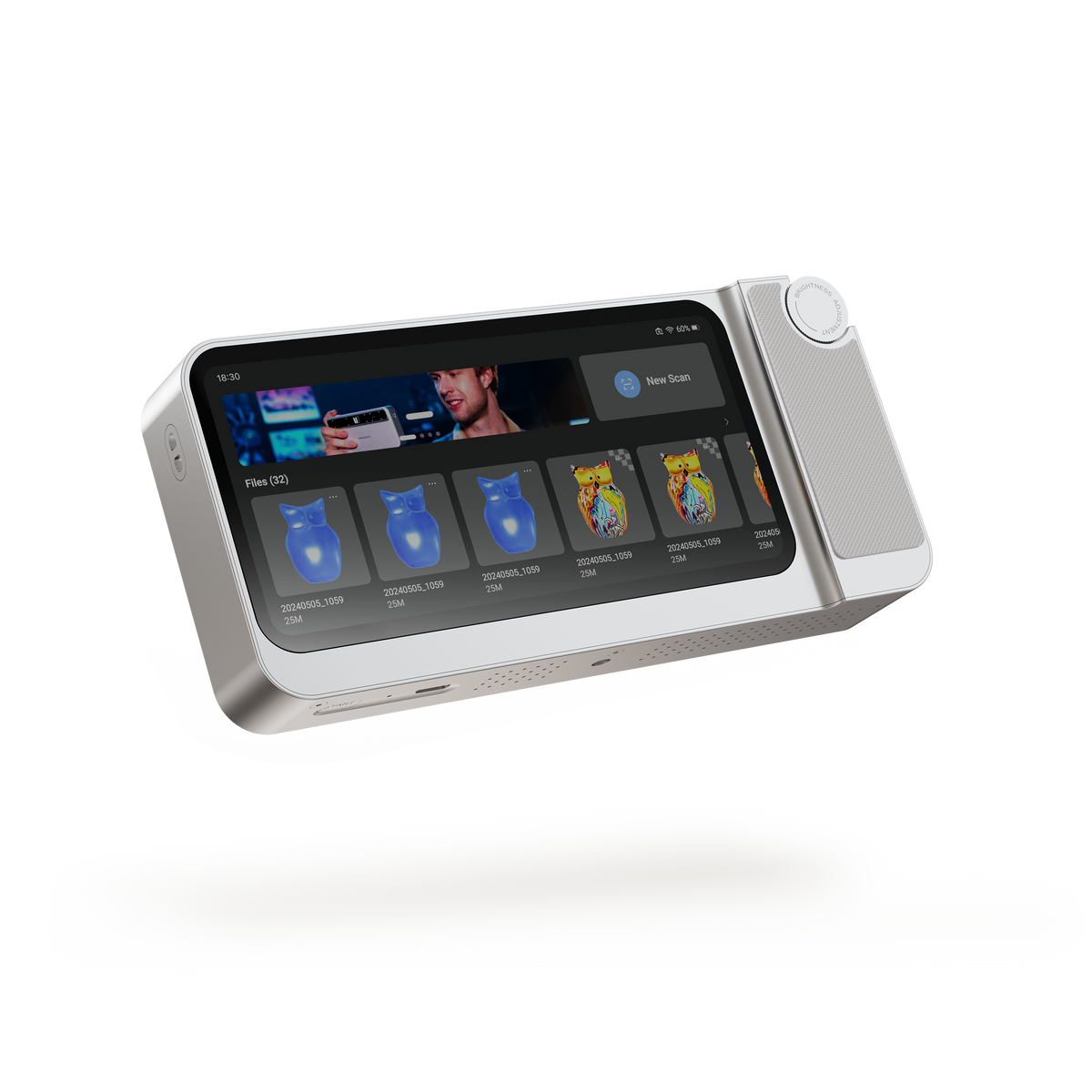

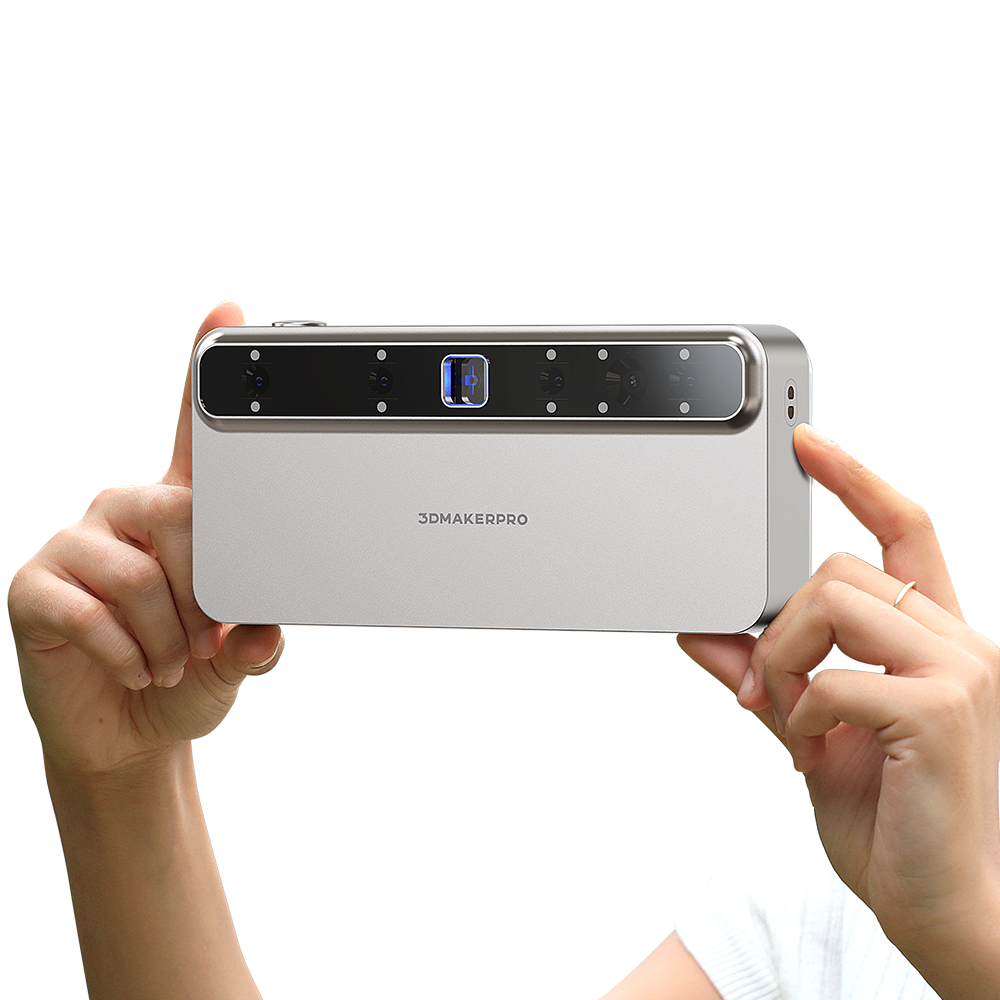

Toucan 3D Scanner
- All-in-One Workflow
- ≤0.03 mm Accuracy
- Up to 1000×750 mm FOV
- High-Power MEMS Optics
1× Scanning spray (first 300 orders, worldwide)
1× Silicone case
1× Lanyard

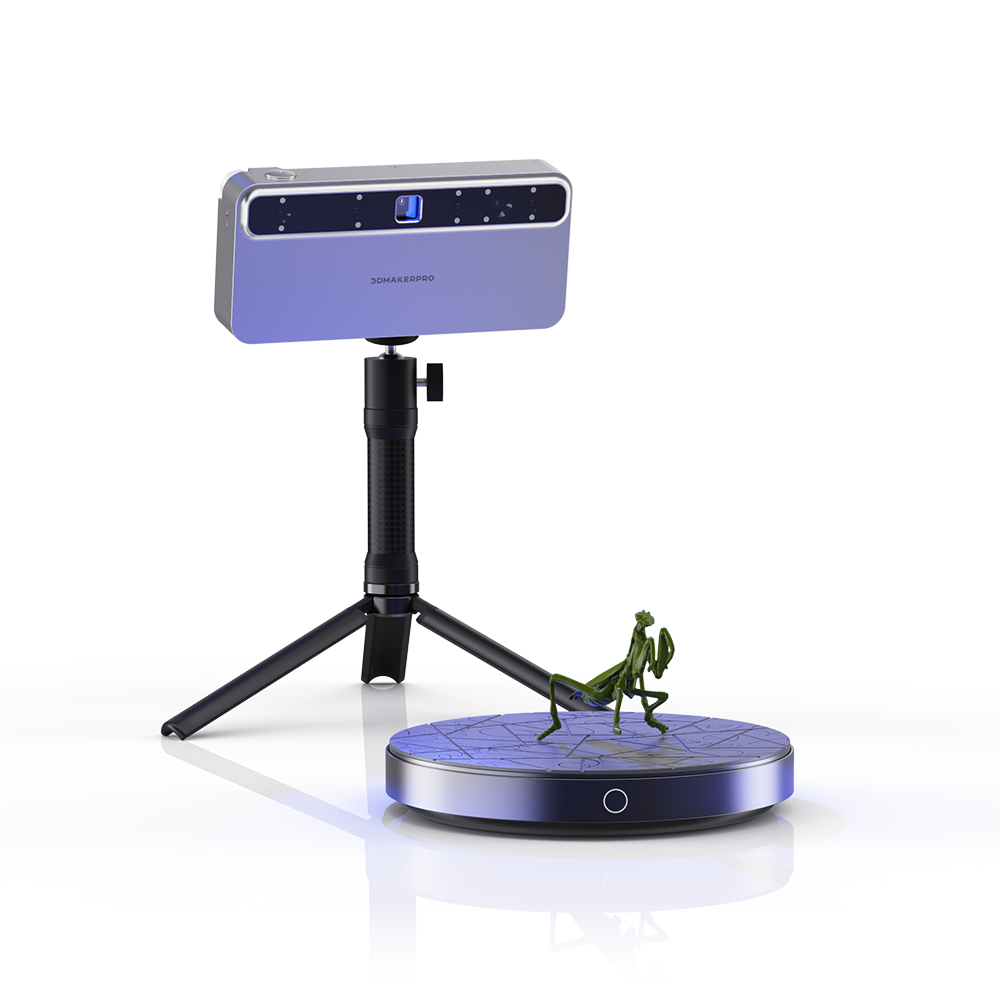

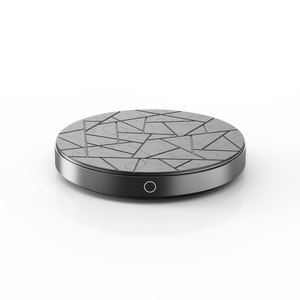

Automatic turntable
Tripod for Toucan

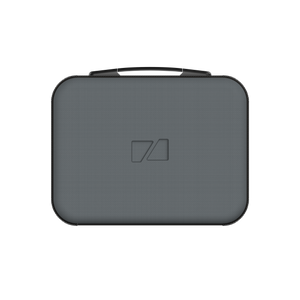

Carrying Case for Toucan
Automatic turntable
Tripod for Toucan
Carrying Case for Toucan
AESUB Blue Scanning Spray 400 ml
- Disappearing state-of-the-art scanningspray
- No cleaning required
- Thin and homogeneous coating
- Free of pigments
- Developed and approved by scanning experts
AESUB blue is a self-vanishing scanning spray developed by scanning experts. The spray evaporates within a few hours, meaning that there is no need for cleaning after scanning. Unlike traditional sprays, AESUB blue does not contain pigments and thus avoids pigment-contamination of sensitive areas, such as laboratories and production sites, equipment and users. You can therefore apply AESUB blue directly, on spot of scanning, without any costly transport to avoid said pigment-contamination in sensitive areas. Overall, AESUB blue greatly increases efficiency and productivity within the digitizing processes.
How to apply?
Spray
Apply AESUB blue from 15-20 cm away. Gently push down the spray button and move the can across the area using even, back and forth strokes. Move at a consistent pace to achieve an even coating. Spray over the entire surface that you will be scanning.
Scan
Scan can be started as soon as you have a stable & white coating.
Scan object in usual manner.
Done
The applied coating of AESUB blue sublimes and thus eliminates the need for complex cleaning after use.
Geomagic Wrap for 3DMakerpro (Essential)
- High Quality Automatic CAD Conversion
- Automatic Mesh Healing
- Industry standard Mesh processing and refinement
- Extensive Select & Feature Fit workflows
- Region Detection
- Feature Extraction
- Cross Sectioning (curves & sketch-like results)
Wrap Editions Comparison
|
Essential |
Lite |
|
Import neutral 3D scan formats (STL, OBJ, PLY, XYZ, PTS) |
Import neutral 3D scan formats (STL, OBJ, PLY, XYZ, PTS) |
| Export neutral CAD formats (STEP, IGES) | Export neutral CAD formats (STEP, IGES) |
| Basic Scan-to-Scan Alignment and Refinement | Basic Scan-to-Scan Alignment and Refinement |
| Scan to World Coordinate System Alignment | Scan to World Coordinate System Alignment |
| Point Cloud Editing | Point Cloud Editing |
| Polygon Healing and Refinement | Polygon Healing and Refinement |
| Cross Section through Models | Cross Section through Models |
| Accuracy Analysis for 3D Solids | Accuracy Analysis for 3D Solids |
| 3D Measurement Tools | 3D Measurement Tools |
| Automatic Prismatic Feature Detection and Extraction | / |
| Constrained Prismatic Feature fitting to Scans- Point, Line, Plane, Sphere, Cone, Torus, etc. | / |
| Export of fit features in neutral CAD formats | / |
| 3D Curve Drawing and Editing | / |
| Automatic Surfacing - Fast Polygon to CAD conversion | / |
Overview

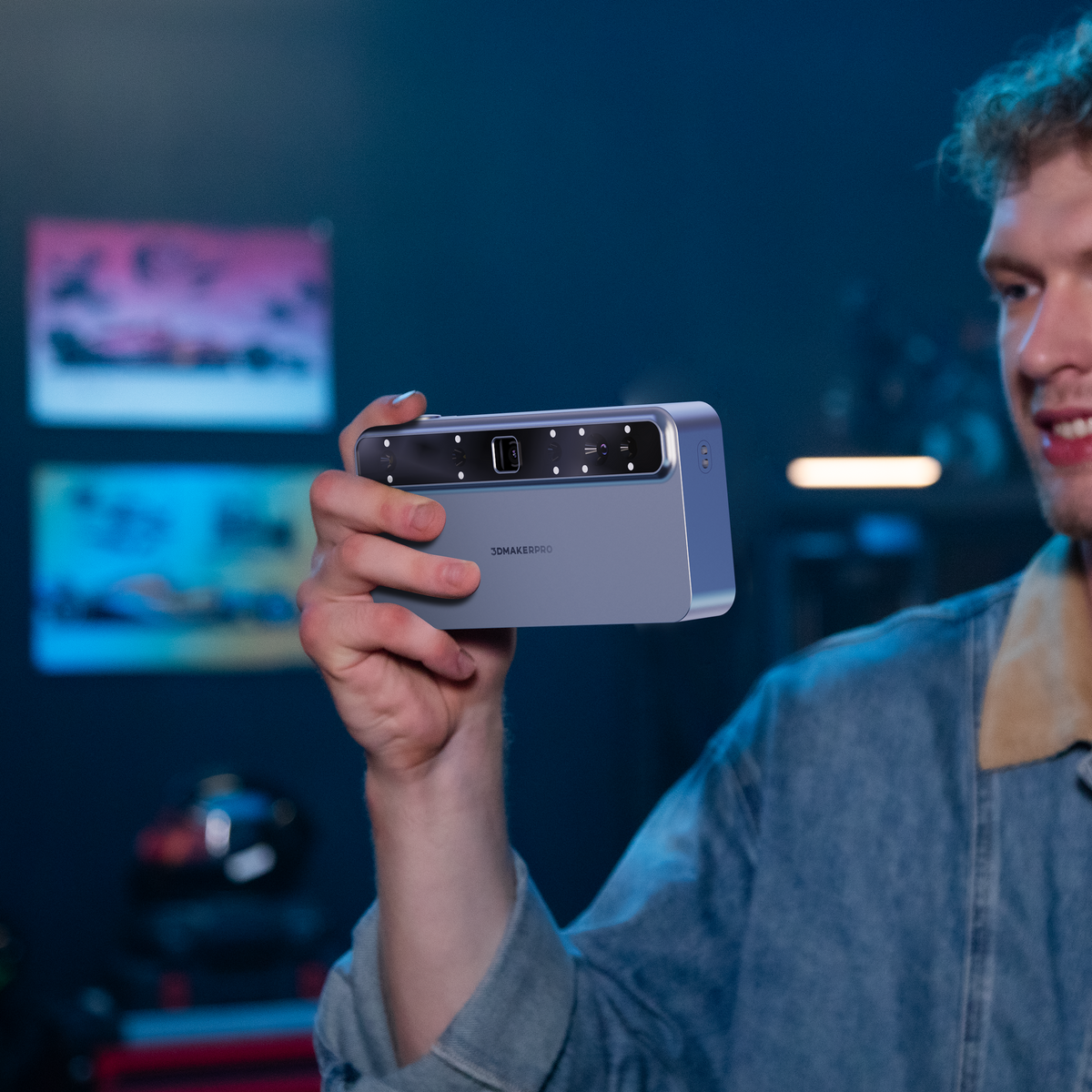

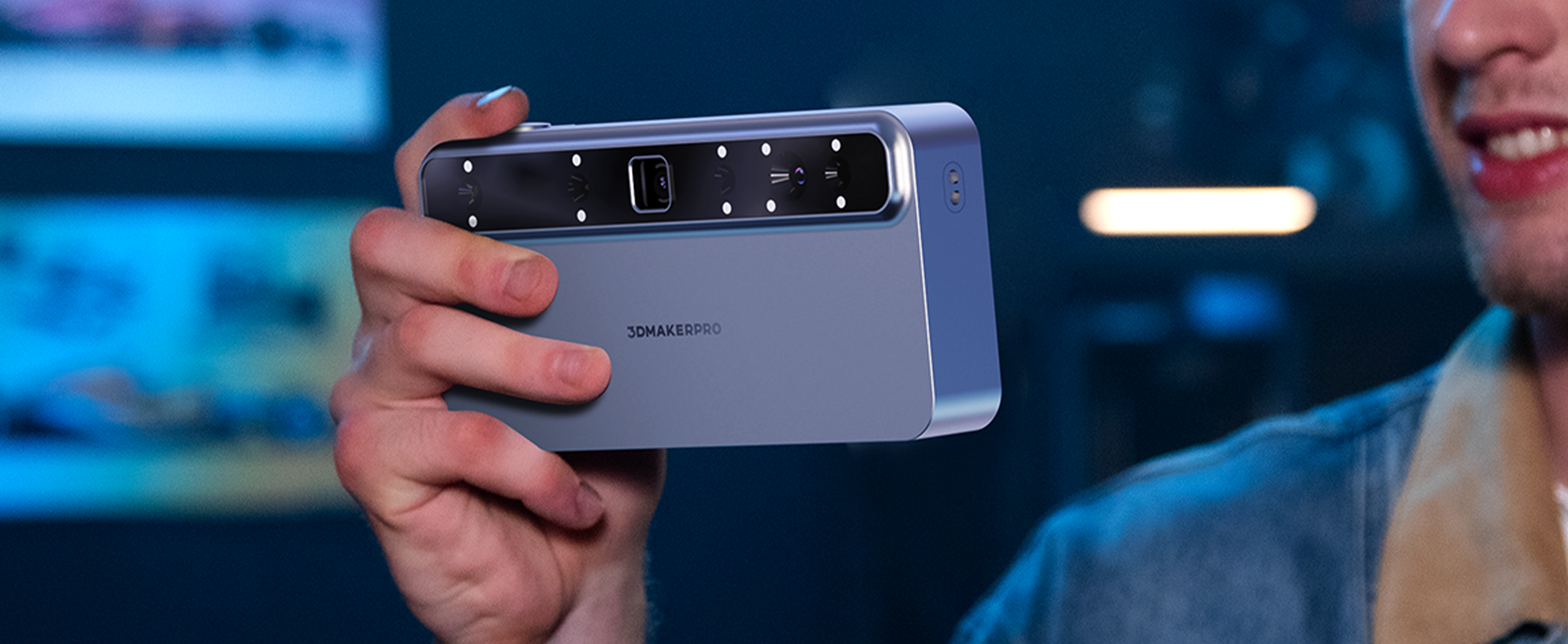

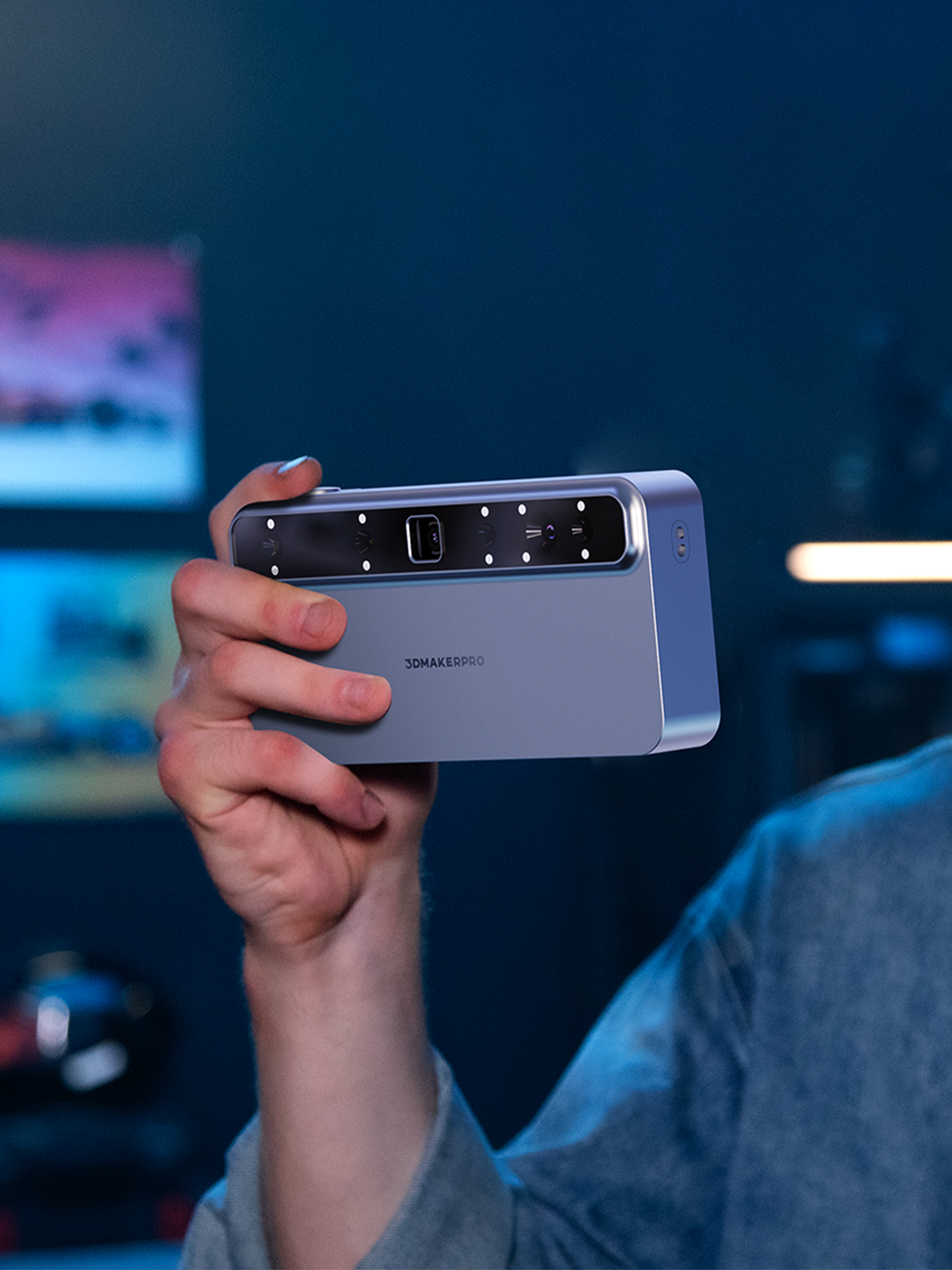

Toucan Handheld 3D Scanner Pre-Launch | Portable & Accurate
Finer, Larger, Brighter
Toucan’s upgraded hardware boasts a powerful MEMS projector with better accuracy and adaptability. Near/far scan modes target objects of all sizes.
0.03 mm
Accuracy
0.05 mm
Resolution
1,000 mm
Working Distance
Deep Detection, Fearless of Cavities
Super Scan Depth
Scans 200-1000mm, probing deep cavities like a 33cm vase interior.
Complete in One Go, No Blanks Left
Smart Resume Scan Mode
Toucan recognizes different object orientations, filling in gaps during the scanning process to effortlessly capture the underside and internal structures.
Toucan Handheld 3D Scanner Pre-Launch | Portable & Accurate
Multi-Level Damping Wheel
Adjusts parameters, modes, and zoom effortlessly via the wheel.
Quick Buttons
For fast setup of scan start, pause, end, and serving as a single-shot photo mode.
Performance Parameters
Toucan 3D Scanner
Continuous Handheld Scan/ Photo Scan / Table Scan
3D Cameras *4
48 MP RGB Camera *1
Blue Laser Structured Light
(Class1/Class3R)
≤ 0.03mm (Small)/ ≤ 0.10mm (Large)
≤ 0.03mm (Fixed Shot)/ ≤ 0.05mm (Small)/ ≤ 0.10mm (Large)

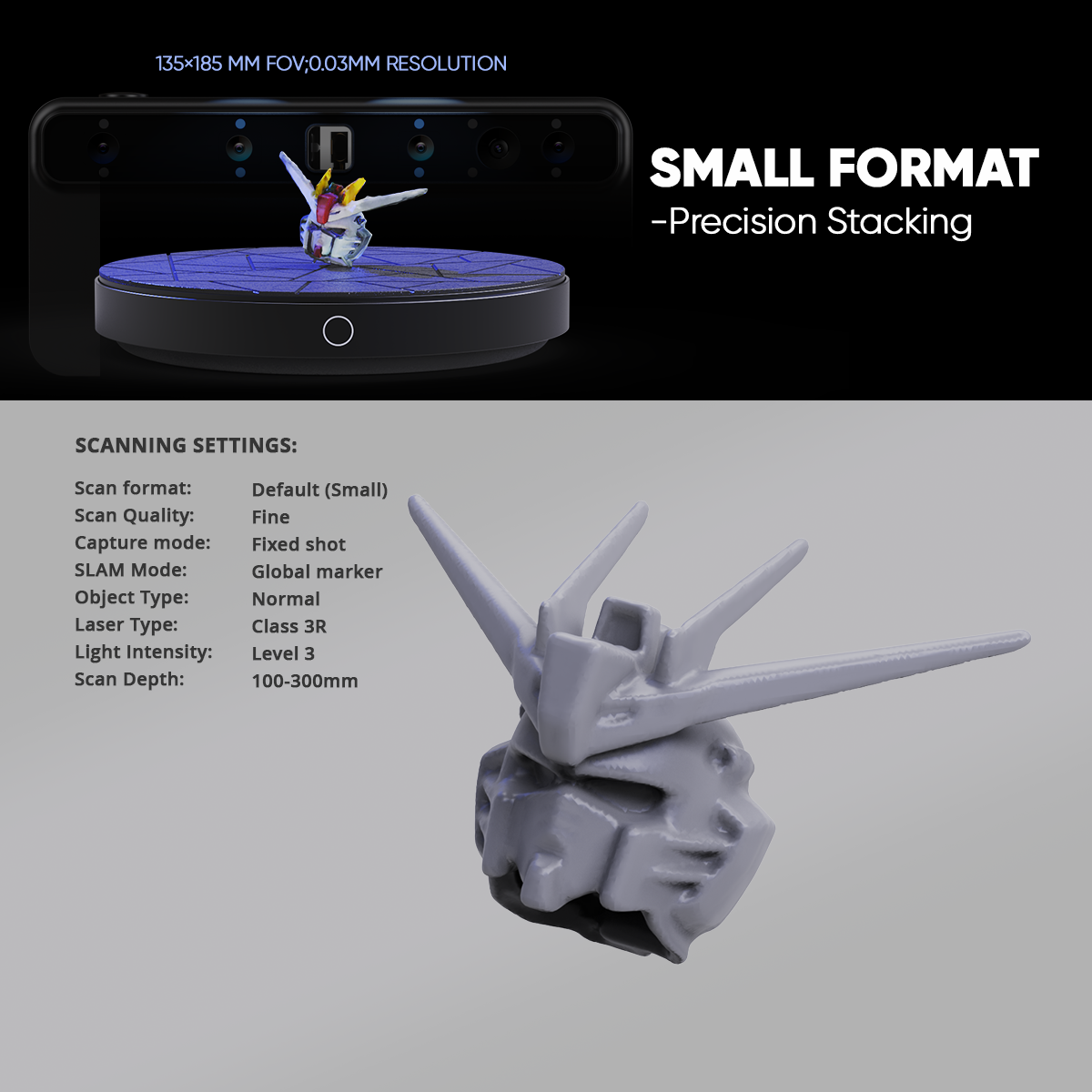

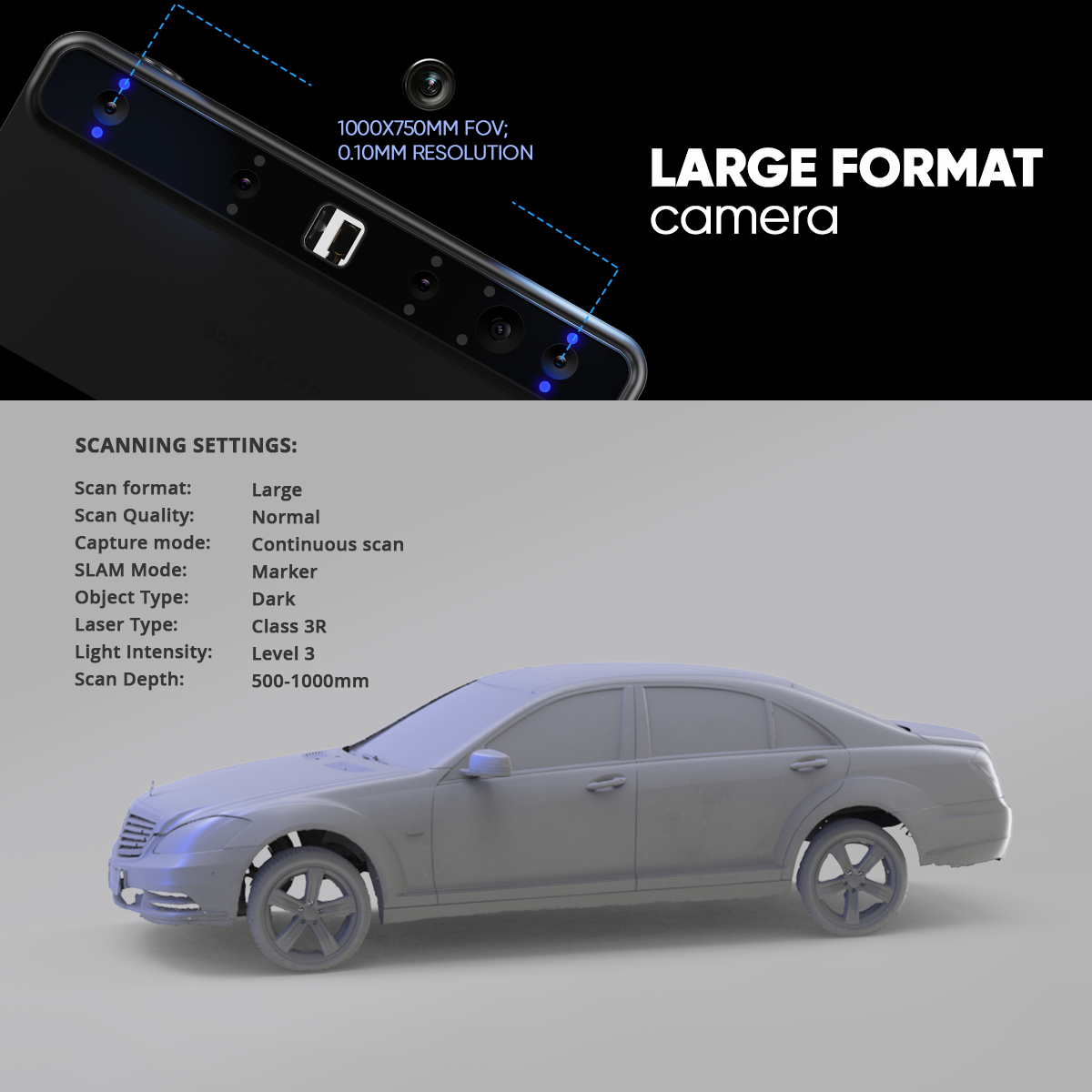

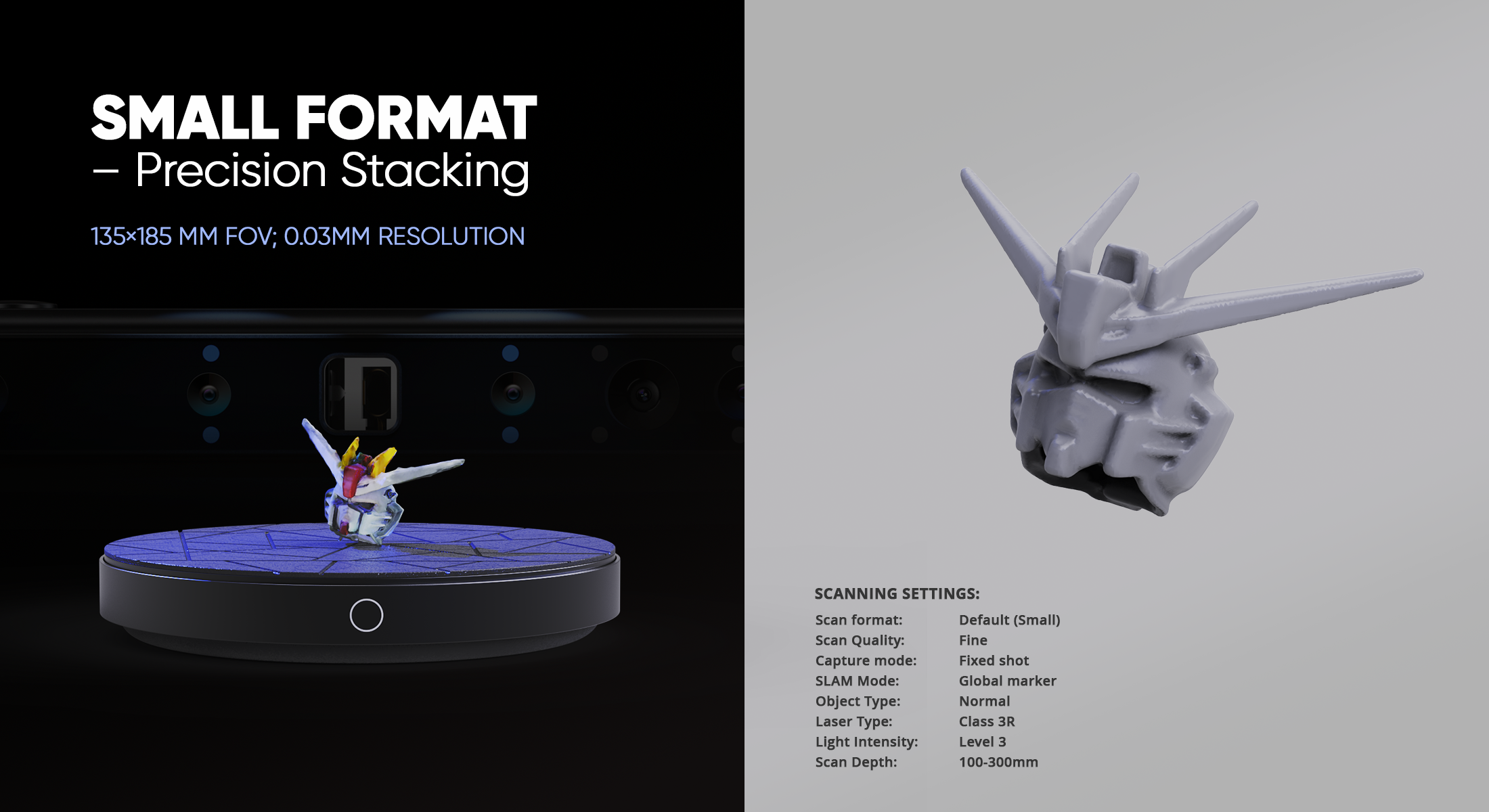

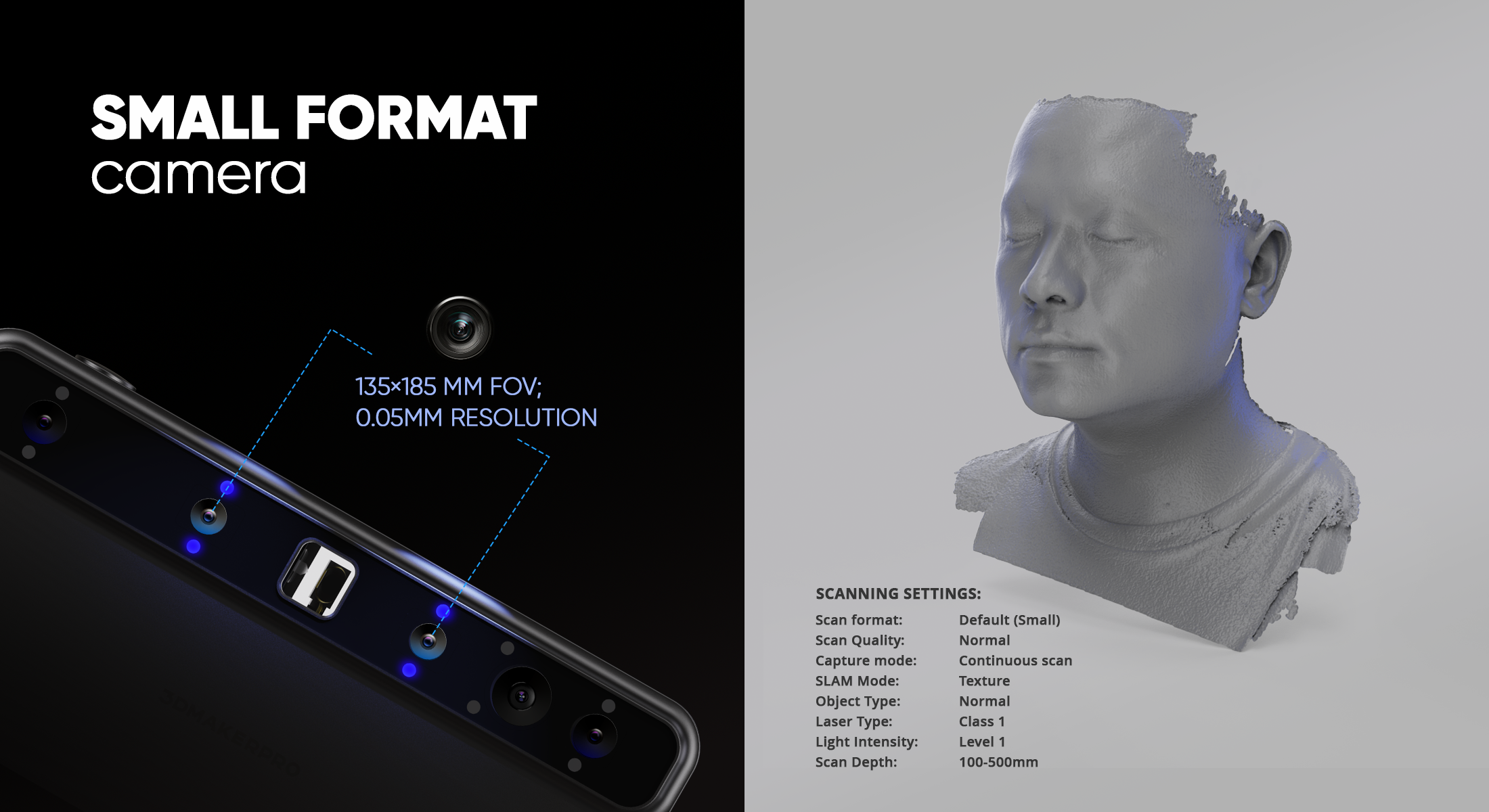

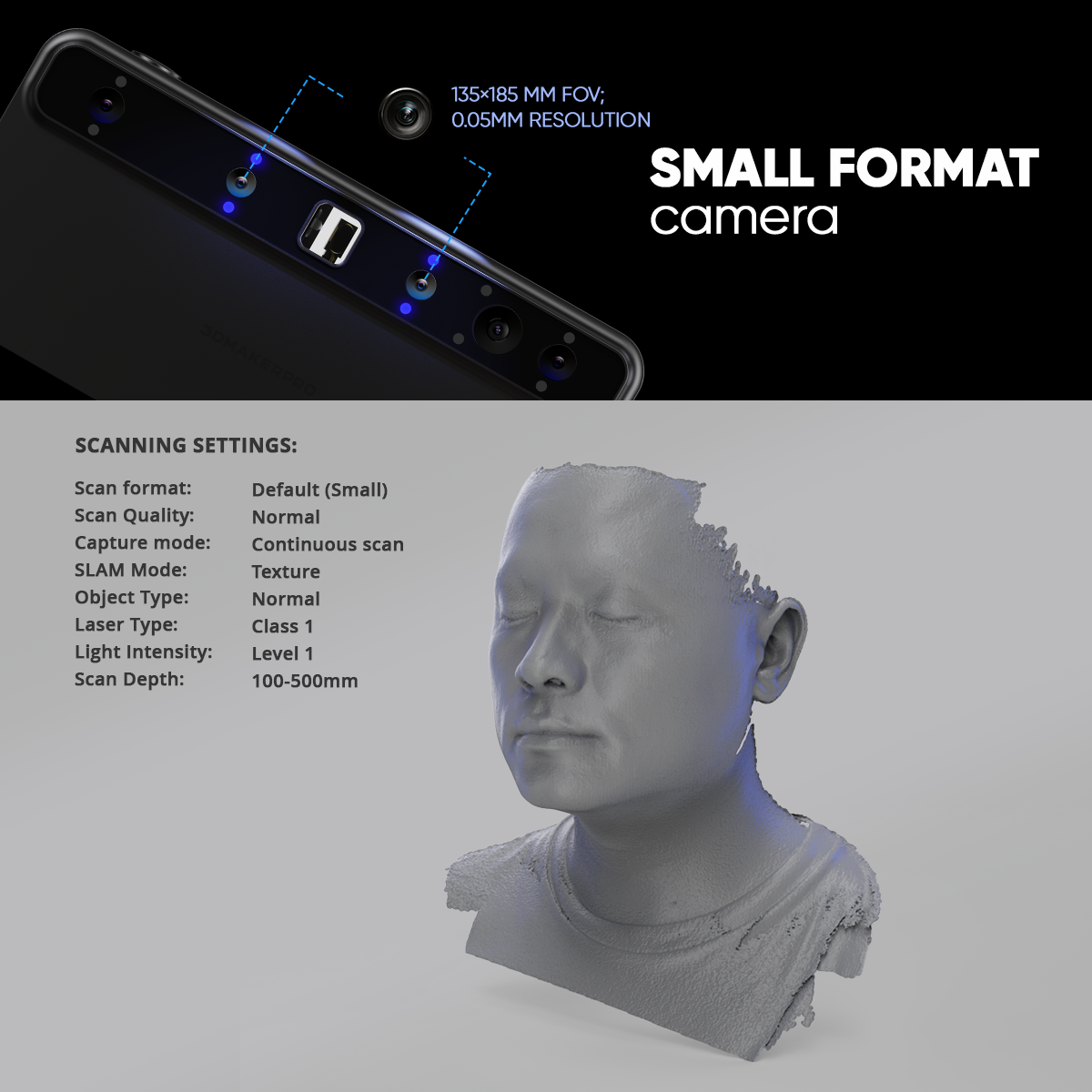

135×185 mm (Small) / 1000×750 mm (Large)
200–1000 mm
Up to 15 fps
8-core 2.4 GHz CPU + Mali-G52 GPU
32 GB DDR4 / 256 GB eMMC
6600 mAh
Wi-Fi 6, Bluetooth4.1, Interface: USB-C
Position Sensor: 9-axis IMU
Tracking Method: Features/ Markers/ Global Markers
Button: 2
Scroll Wheel : 1
200×93×37.5mm
735g

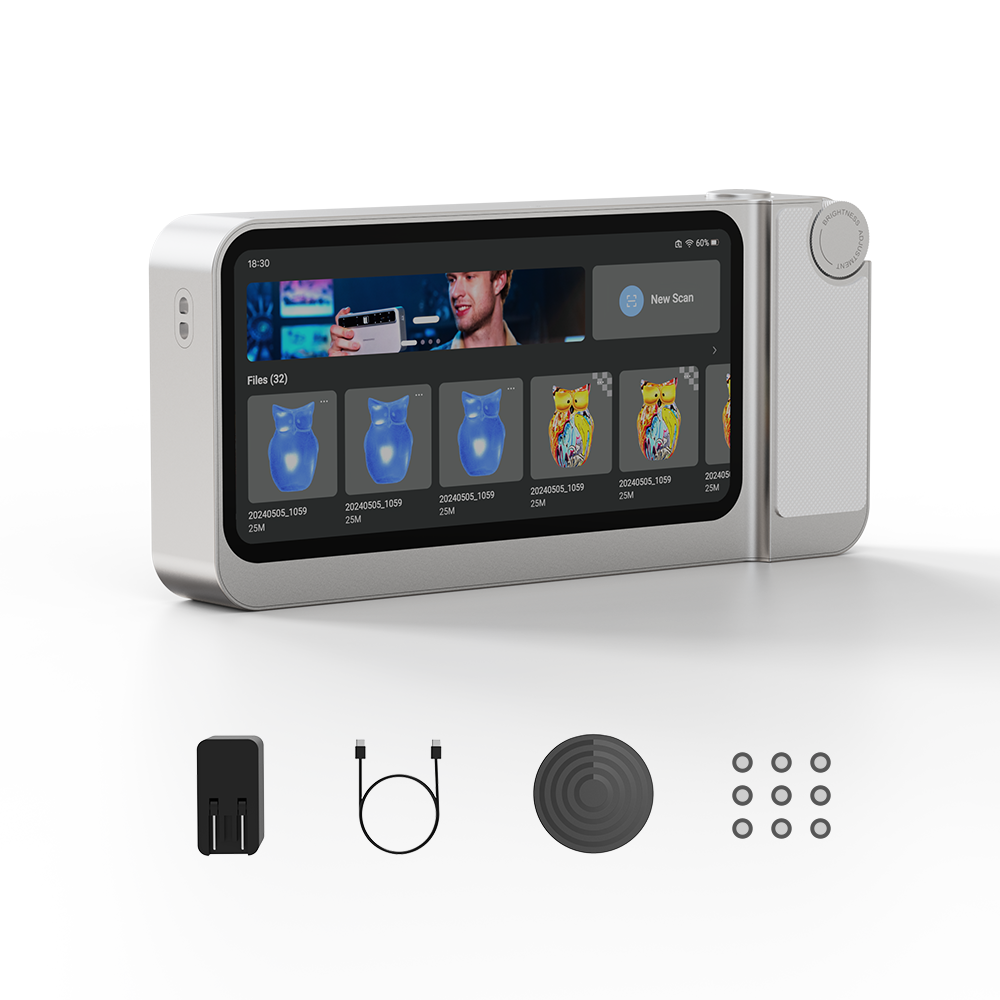

Toucan 3D Scanner

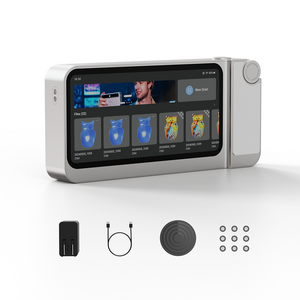

Standard
 |
 |
 |
|
Toucan 3D Scanner × 1
|
Power Adapter & Cable × 1
|
Manual Turntable × 1
|
 |
 |
 |
|
Markers × 1
|
Calibration Board × 1
|
Silicone case × 1
|
 |
||
|
Lanyard × 1
|
|
|

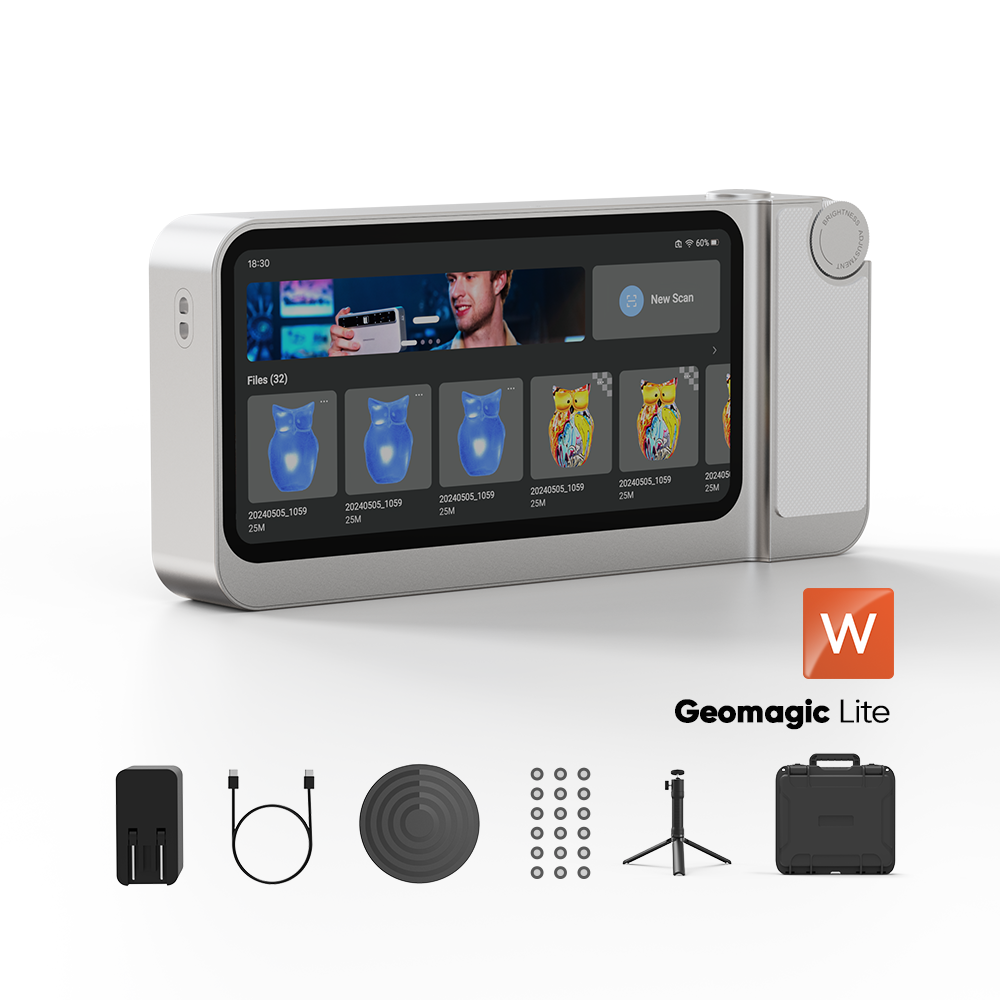

Premium
|
|
|
|
Toucan 3D Scanner × 1
|
Power Adapter & Cable × 1
|
Manual Turntable × 1
|
|
|
|
|
Markers × 1
|
Calibration Board × 1
|
Silicone case × 1
|
|
 |
 |
|
Lanyard × 1
|
Tripod × 1
|
Carrying Case × 1
|
 |
|
|
|
Geomagic Wrap Lite (license)
|
|
|
|
|
|
|
Toucan 3D Scanner × 1
|
Power Adapter & Cable × 1
|
Manual Turntable × 1
|
|
|
|
|
Markers × 1
|
Calibration Board × 1
|
Silicone case × 1
|
|
||
|
Lanyard × 1
|
|
|
|
|
|
|
Toucan 3D Scanner × 1
|
Power Adapter & Cable × 1
|
Manual Turntable × 1
|
|
|
|
|
Markers × 1
|
Calibration Board × 1
|
Silicone case × 1
|
|
|
|
|
Lanyard × 1
|
Tripod × 1
|
Carrying Case × 1
|
|
|
|
|
|
Geomagic Wrap Lite (license)
|
|
|
1. When will the product be shipped?
This event is an early bird pre-sale, and it is expected to start shipping in the order of orders in mid-October.
2. What should I keep in mind when using Toucan from 3DMakerpro for the first time?
Toucan 3D Scanner benefits from the well-established 3DMakerpro ecosystem. This includes free scanning software (JMStudio), the Reverse Engineering tool (Geomagic Wrap for 3DMakerpro), a wide range of accessories, and a comprehensive after-sales support network.
3. I'm a long-time 3DMakerpro user. How does the Toucan differ from previous scanners?
Thank you for your support of 3DMakerpro! The Toucan is our first all-in-one scanner, utilizing Phase-Shifting Structured Light technology. This makes it especially effective for scanning thin and delicate objects. Notably, the Toucan can independently complete scanning and meshing tasks without being tethered to a computer. However, you can still use JMStudio and Geomagic for further processing.
4. What is the Toucan workflow like?

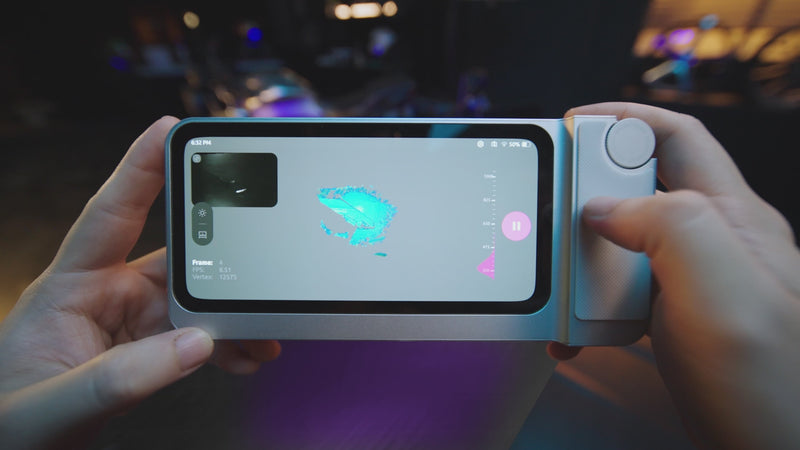

Toucan 3D Scanner is capable of independently handling tasks such as scanning, point cloud editing, model fusion, and texture mapping. Once you've completed your scans, you can export the files to a computer via JMStudio for further processing or application.
5. What is the range of a Toucan single frame?
Near range: 135 x 185 mm
Far range: 1000 x 750 mm
6. Does the Toucan 3D Scanner use the same scanning software as the Moose/Seal 3D Scanner?
Yes, all 3DMakerpro 3D scanners, including the Toucan, utilize JMStudio software.
7. What file formats does JMStudio software support for export?
JMStudio software supports exporting to the following formats: OBJ, STL, PLY, and ASC. If you need additional formats, you can use third-party software for conversion.
8. Can we 3D print the scanned model directly?
Yes, if you export the file in STL format, it can be directly imported into any slicing software for 3D printing.
9. Can I modify the scanned model using other 3D design software?
Yes, the scanned model can be exported in formats such as OBJ and STL, which are compatible with all major design software, including Autodesk CAD, Blender, C4D, Maya, Rhino, ZBrush, and Fusion 360.
10. Can my scanned models be used in VR?
Yes, our scanned models can be directly imported into Unreal Engine or Unity3D to create VR applications. They also support the Apple ARKit for AR application development.
11. Do I need to apply markers for 3D scanning?
You can apply markers, but you don't need to. Applying markers is recommended if the object's features are unclear or difficult to identify. Toucan supports three tracking modes: feature recognition (no markers, local markers, and global markers).
12. How do you provide after-sales support?
3DMakerpro offers a two-year warranty. If you have any questions during use, please feel free to contact us, and we will respond as soon as possible.
After-sales technical support: https://forum.jimumeta.com/home/help/support.html
Email: service@3dmakerpro.com
13. Is scanning faces with the Toucan 3D Scanner harmful to the eyes?
The Toucan 3D Scanner has a faces mode that reduces the light level to Class 1, making it eye-safe. However, direct viewing of the light source is not recommended.
14. Does the Toucan 3D Scanner support color textures?
Yes, the Toucan 3D Scanner features a 48MP color texture camera, allowing it to generate detailed color models.
Find your prefect scanner
|
Toucan
|
Lynx
|
Moose
|
|
Accuracy
0.03mm
|
Accuracy
0.10mm
|
Accuracy
0.03mm
|
|
Resolution
0.03mm
|
Resolution
0.30mm
|
Resolution
0.07mm
|
|
Color scanning
24-bit color texture
|
Color scanning
Extended support
|
Color scanning
24-bit color texture
|
|
Light source
Blue Laser Structured Light
|
Light source
NIR
|
Light source
Blue LED
|
|
Work distance
200–1000 mm
|
Work distance
400-900mm
|
Work distance
150-400mm
|
|
Typical object sizes
15-4000mm
|
Typical object sizes
100-2000mm
|
Typical object sizes
15-1500mm
|
|
Dimensions
200×93×37.5mm
|
Dimensions
255×75×48mm
|
Dimensions
120×60×35mm
|
|
Weight
735g
|
Weight
800g
|
Weight
280g
|
